| 型號(Model) | PSI500 | PSI500誠實者(Honest) | PSI500誠實者+(Honest+) | |
| 運動部分(Moving part) | THK絲桿+滑塊 (THK ball screw+Siide) | 直線電機(Linear motor) | ||
| 測厚功能(Thickness measurement function) | 無(No) | 無(No) | 有(Yes) | |
張力計(Tensiometer) | 國產(Domestic) | 進口(Imported) | ||
| 檢測用途(Application) | 來料檢測或清洗后檢測 (For the 1st time inspection of new stencil or inspection after cleaning of cleaned stencil) | |||

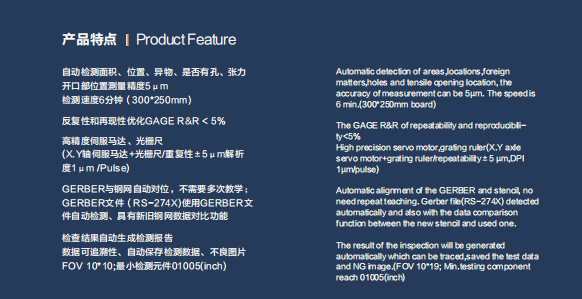

| 測量項目(Inspection items) | 開孔面積、位置、偏移、尺寸、異物、毛刺、堵孔、多孔、少孔、張力 (Area,position,offset,size,foreign objects,burr,hole clogging,miss hole,tension) | |||
| 每FOV時間(Inspection time per FOV) | 單FOV測量時間(Single FOV measurement time)0.8S/FOV | |||
| 打開job速度(Open job speed) | 8.6萬開孔(ten thousand Opening)1.5S | |||
| 放大縮小速度(Zoom in and out speed) | 8.6萬開孔(ten thousand Opening)0.1S/次 | |||
| 尺寸重復性(Dimensional repeatability) | 0.015(mm) | |||

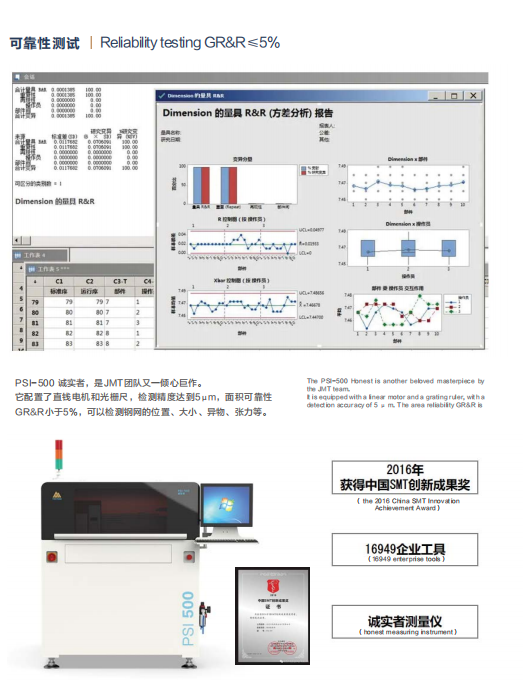

| 開孔面積GRR(GRR of aperture area) | Gage R&R<5% | |||
| 運控精度(Motion control accuracy) | 重復(Repeatability):±2μm定位(Location):±3μm | |||
| 檢測開孔數(Max.apertures for inspection) | ≤40萬(≤400 thousands) | |||
| 鏡頭(Lens) | 雙遠心鏡頭(Dual telecentric) | |||
| 照明(lighting) | 白色同軸光，藍色平行面光(White coaxial light,blue parallel plane light) | |||
| 張力計校準方式(Calibration method of tensiometer) | 自動校準(Automatic calibration) | |||
| 相機(Camera) | 標配(Standard):BASLER 500萬(5M) | 選配(Options):BASLER 1200萬(12M) | ||
| 相機像素(Camera pixel) | 6.9μm | 4.2μm | ||
| 設備分辨率(Device resolution) | 13μm | 8μm | ||
| 最大測量開孔尺寸(Max.size for apertures) | 16mm×13mm | 16mm×13mm | ||
| 最小測量開孔尺寸(Min.size for apertures) | 100μm | 80μm | ||
| 最小測量開孔間距(Min.distance between apertures) | 200μm | 160μm | ||
| FOV | 17mm×14mm | 17mm×14mm | ||
| 網框尺寸(Stencil size) | 736mm*736mm max 300*300mm min | |||
| 檢測范圍(Inspection area) | 500*500mm | |||
| Gerber File | RS-274X format(Gerber data teaching) | |||

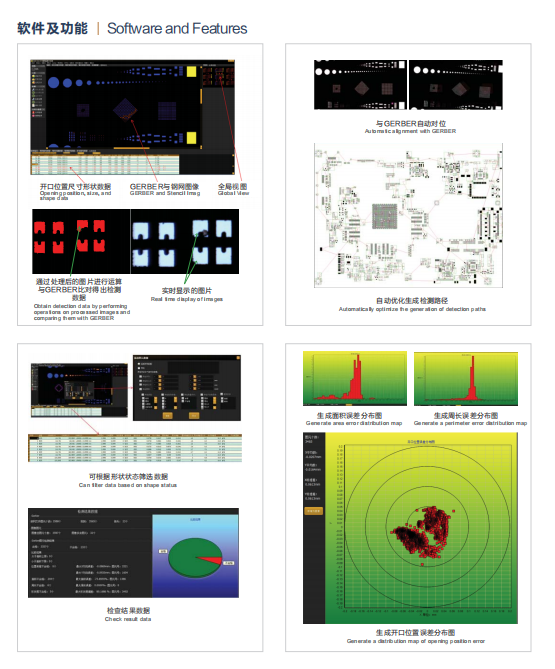

| SPC | Histogram,Xbar-R Chart,Xbar-s Chart,Cp&Cpk,Daily/Weekly/Monthly Report | |||
| 遠程維護(Remote maintenance) | TeamViewer software IAnydesk or Sunlogin software | |||
| 離線編程(Offline programming) | 離線編程查看(Offline programming checking) | |||
| 計算機系統(Computer system) | 凌華工控機(ADLINK Industrial personal computer) | |||
| 計算機(Computer) | Windows 10專業版64位(Windows10 Professional Edition 64 bit) | |||
| 電源要求(Power requirement) | 220V,50/60HZ,功耗(Power):2500W | |||
| 設備尺寸(Equipment size) | 1185mm(1)*1240mm(w)*1430mm(h)不含三色燈顯示器Excluding tricolor lights or monitor | |||
| 氣源(Air supply) | 0.4Mpa-0.6Mpa | |||
| 設備重量(Equipment weight) | 1025kg | |||
| 選配項(Options) | 定制開發MES模板(Customized development of MES template) | |||
